Product Details
Place of Origin: Jiangsu, China
Brand Name: Hongbao
Certification: ISO
Model Number: BHG1
Payment & Shipping Terms
Minimum Order Quantity: 5MT
Price: Negotiable
Packaging Details: Seaworthy Coil Bundle Packing
Delivery Time: 15 working days
Payment Terms: T/T, L/C, Western Union, D/A, D/P
Supply Ability: 30000MT per year
Material:: |
BHG1, SPCC, SPCD-SD, SPCD, SPCE |
Thickness:: |
0.45-1.5mm |
Processing:: |
ERW |
Shape:: |
Coil |
Material:: |
BHG1, SPCC, SPCD-SD, SPCD, SPCE |
Thickness:: |
0.45-1.5mm |
Processing:: |
ERW |
Shape:: |
Coil |

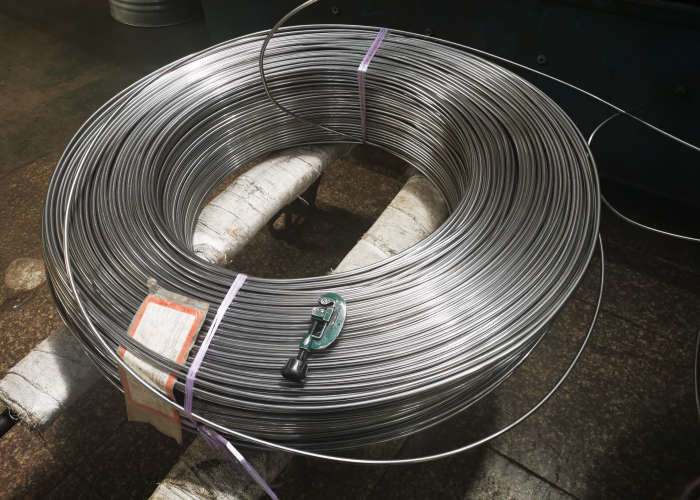

BHG1 Welded Low Carbon Steel Tube Small OD4mm Wall Thickness 0.5mm Zinc Coated Salt Spray 240h Bundy Tubes
Description:
1. Main use: widely used in evaporators, refrigerators, automobiles and heaters
2. Features: high intensity, good plasticity, and small resistance
3. Standard: ASTMA254-94
4. Materials: materials can be altered according to customers' requirements
5. Size: 4.7*0.7mm, 6.35*0.7mm,
6. Type: Zinc coating outer side, Cu coating outer side, Cu coating both sides
7. Packing: packed with iron pallet
Application: Refrigerator Condenser, Evaporator Equipment.
Specification: GB/T 24187 Cold-drawn precision single welded steel tubes or as requested.
Material
| Type | C | Si | Mn | P | S |
| Cold Rollled Low Carbon Steel | ≤0.08 | ≤0.03 | ≤0.30 | ≤0.030 | ≤0.030 |
| Cold Rolled Ultra-Low Carbon Steel | ≤0.008 | ≤0.03 | ≤0.25 | ≤0.020 | ≤0.030 |
Usual Diameter: 4, 4.2, 4.76, 6, 6.35, 7.8,
4-12 could be all available in production.
Usual Thickness: 0.5, 0.65, 0.7,
0.45-1.5 could be all avaliable in production.
Auunal Output: 30000MT
Advantage: Surface coated copper or zinc avaliable, time of salt spray testing reach to 240 hours.
